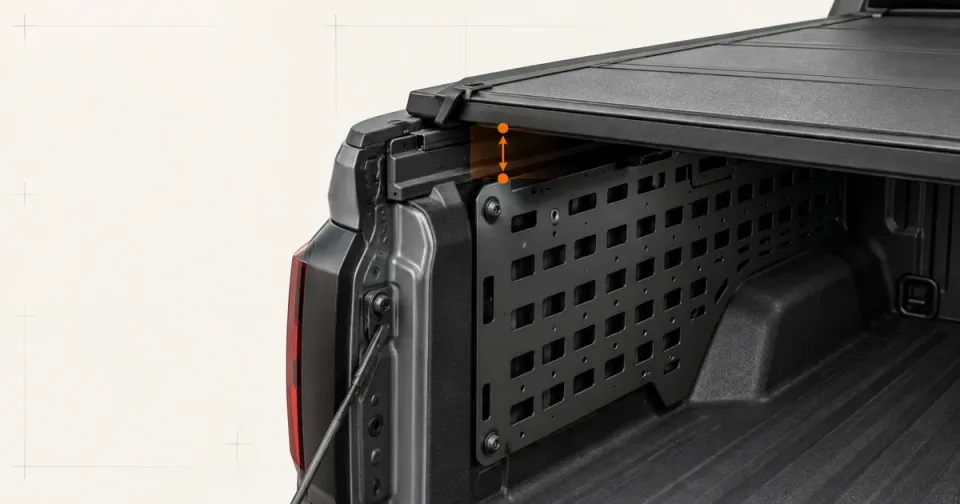

Can Toyota Inner-Bed MOLLE Panels Work With the Genuine Hard Tonneau Cover on a 2024+ Tacoma?
Verify fitment with the merchant before you buy.
Reviewed by DoesItFit Editorial · How we evaluate compatibility
FULL THREE-PANEL SET: TOYOTA LISTS A CONFLICT
Do not pair Toyota's full three-panel MOLLE set with the genuine hard tri-fold cover on a 2024+ Tacoma. Toyota's dealer-installed-options chart marks that full set as conflicting with the hard cover. The side-panel installation sheet, by contrast, names no conflicts but does not name the hard cover—so side panels alone require a current Toyota dealer fitment confirmation rather than a blanket yes.
Compatibility snapshot
| Toyota panel configuration | Hard-tonneau verdict | Evidence boundary | Required check |
|---|---|---|---|
| Full three-panel MOLLE set, including PT767-35900 front panel | Conflicts as documented | Toyota's DIO chart marks the full set against genuine hard covers PT954-35240/35241. | Do not order the combination. |
| Side panels PT767-35700/35800 only | Unconfirmed | The side-panel sheet names no conflict but does not approve the hard cover. | Obtain current VIN- and part-number confirmation from Toyota. |
| Third-party panel or cover combination | Unknown | Toyota's conflict chart does not establish another maker's clearance. | Require written approval for both exact products. |
Toyota distinguishes the full panel set from side panels
Toyota's installation sheet for side inner-bed MOLLE panels PT767-35700/35800 applies to 2024-and-newer Tacoma and Tacoma HV models. It lists no conflicts and recommends installing the panels before other bed accessories. That sheet is useful for the side-panel installation itself, but it does not name a hard-tonneau part number. Read Toyota's side-panel installation instructions.
Toyota's dealer-installed-options chart draws the essential boundary. It identifies option 1B as the three-panel set—side panels PT767-35700/35800 plus front panel PT767-35900—and marks it as conflicting with option 5A, the genuine hard tri-fold covers PT954-35240/35241. See the Toyota DIO chart, publicly mirrored by Tacoma4G.
The answer depends on whether the front panel is included
Full set, including front panel: stop
The full three-panel set is the configuration Toyota marks as conflicting with hard-cover option 5A. Do not treat a no-conflicts note on the side-panel sheet as an override for the DIO chart's full-set conflict. The answer is no for the three-panel set and Toyota hard tri-fold combination.
Side panels only: do not infer a hard-cover approval
Toyota's side-panel sheet lists no conflicts, but it does not identify either hard-cover part number. The genuine hard-cover brochure's bed-rail-access statement is not an exact panel-and-cover clearance ruling. That means side panels alone remain unconfirmed until Toyota confirms the current VIN, bed length and part-number combination. It is not a safe basis for modifying rails, clamps, panel spacers or cover hardware.
Vehicle, bed and operating checks still matter
Match the panel pieces and bed
Toyota's genuine-parts catalog identifies PT767-35700 as the short-bed inner-bed side-panel set. Use Toyota's application lookup to identify every installed panel and the bed length; do not transfer a short-bed conclusion to an unidentified long-bed kit, a front panel, or a 2016–2023 Tacoma. Check Toyota's PT767-35700 application.
Keep Toyota's listed conflict boundary intact
The side-panel instructions call for vehicle-specific hardware and, where required, a riv-nut installation tool and drilling fixture. That installation detail does not override Toyota's listed conflict for the full set and cover. Do not loosen cover rails, remove panel spacers or force clamps around panel hardware to work around it.
Check moving parts only after Toyota confirms the pairing
If Toyota confirms a side-panel-only combination for the exact truck, fully close and open the tonneau, inspect its rails, latches and drain routing, then secure a light test load to the panel. Stop if the cover binds, a latch will not close, or any panel hardware contacts the cover. Neither source establishes clearance for accessories mounted to a MOLLE panel.
Bottom line
Toyota lists its full three-panel MOLLE set and genuine hard tri-fold as a conflict. For side panels only, the available Toyota installation sheet does not name the hard cover, so get a current Toyota VIN/part-number confirmation before buying. Treat any third-party cover, front panel, carried gear or modified mounting arrangement as unknown until its maker lists the combination. For an OEM accessory that does retain documented rail compatibility, compare the cargo-divider and hard-tonneau pairing.
Sources & notes
- Toyota side inner-bed MOLLE-panel instructions, PT767-35700/35800, accessed 2026-09-05. Toyota-issued side-panel installation document for 2024+ Tacoma/Tacoma HV. It lists no side-panel conflicts, but does not name the hard-cover part numbers and therefore does not approve the pair.
- Toyota 2024 Tacoma DIO accessories chart, accessed 2026-09-05. Toyota dealer-installed-options document, publicly mirrored by Tacoma4G: it identifies the three-panel MOLLE set as PT767-35700/35800/35900 and marks it as conflicting with hard-cover option 5A (PT954-35240/35241). The public host is not Toyota; the article uses it only for this explicitly stated product-conflict boundary.
- Toyota Genuine inner-bed side panels, PT767-35700, accessed 2026-09-05. Toyota parts application identifying the named side-panel set as Tacoma short-bed equipment; it does not prove compatibility with the front panel, hard cover, or earlier generations.
